Hydra TAVI Bioprosthesis

  •   The Hydra TAVI system comprises of
  •   Stent frame with pericardial leaflets
  •   Delivery catheter
  •   Loading System

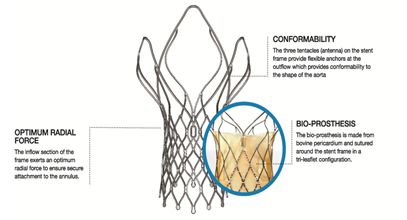

The Hydra aortic valve stent frame is made of nitinol and the leaflets are cut out of bovine pericardium. It is designed for compatibility with the native anatomy for percutaneous replacement procedures. The three tentacles (antenna) on the stent frame provide flexible anchors at the outflow which provides conformability to the shape of the aorta. The inflow section of the frame exerts a higher but optimum radial force to ensure secure attachment to the annulus. The bio-prosthesis is made from pericardium and sutured around the stent frame in a three leaflet configuration. The leaflets are designed to function in various shape or dimensions. The bovine pericardium used is approved for human use.

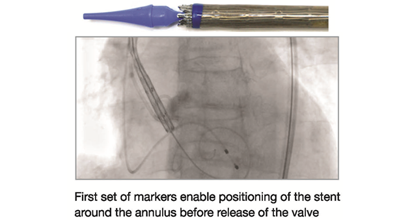

image 1 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations image 2 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations

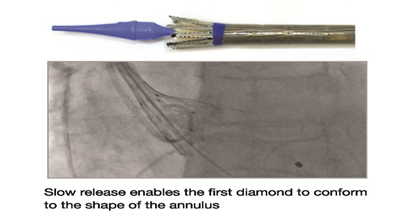

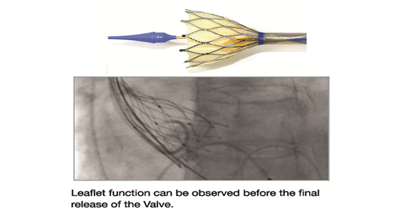

image 3 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations image 4 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations
image 3 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations

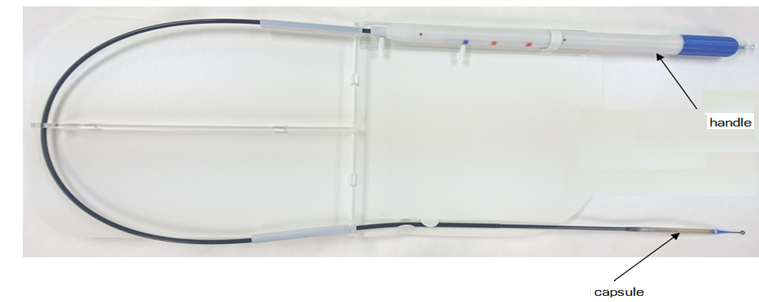

The catheter is compatible with a 0.035 in (0.889 mm) guidewire. The distal end of the system features a radiopaque tip. The bioprothesis is crimped into a protective 18F sheath at the distal end. The handle is located on the proximal end of the catheter and is used to load and deploy the bioprosthesis. The handle includes a turning knob to open and close the capsule and to facilitate precise bioprosthesis placement. The knob turns clockwise to retract the delivery catheter for deployment and counterclockwise to advance the delivery catheter. The catheter (Model HYDRA18F) is the same for the three models of the bioprothesis. The loading system compresses the bio-prosthesis into the delivery catheter thus preventing trauma to the valve leaflets. It is a single operator system, easy to load. One loading system is used to load all valve sizes.

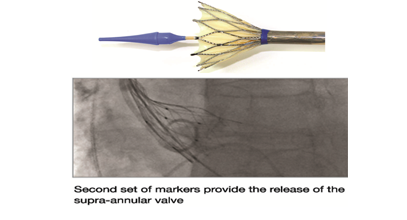

image 4 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations

  •   Soft flexible tip at the distal end to help navigate through the vessels.
  •   The capsule is 18F with a gold marker at the tip for easy visualization in angio.
  •   The catheter shaft is 12F supported with a 15F stabilizer sheath.
  •   The blue knob of the AVDC handle, rotates to release/recapture the valve.
  •   The handle has markings indicating how much of the valve is released
  •   Valve can be recaptured upto 75% release as indicated as orange mark on the handle

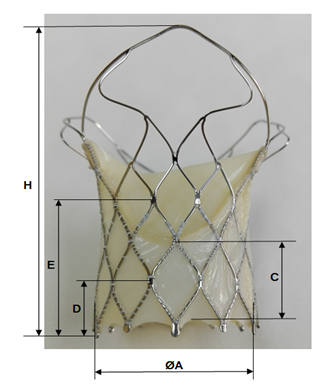

Dimensions and Sizing

image 5 of Hydra TAVI Bio-prosthesis designed & developed by vascular innovations
HYDRA22 HYDRA26 HYDRA30
Diameter ( ϕ A) mm 22 26 30
Diameter ( ϕ B) mm 39 43 47
Height (H) mm 55 53 51
Sealing Skirt Height (C) mm 12 13 14
FirstMarker (D) mm 5 6 7
SecondMarker (E) mm 15 18 mm 21 mm
Annulus Size 18 to 20 20 to 24 24 to 27
