Cocoon PFO Occluder

The Cocoon PFO Occluder is a percutaneous, transcatheter closure device intended for the occlusion of all types of PFO's in patients with a history of stroke diagnosed by echo-cardiography with right-to-left shunting during Valsalva maneuver.

The Cocoon PFO Occluder is a self expandable double disk device manufactured from braided Nitinol wires coated with platinum. The two discs are linked together by a short connecting waist allowing free motion of each disc. Platinum provides superior biocompatible properties compared to Nitinol. The platinum coating also provides radio opacity which enables easy positioning in the defect. The discs are filled with polypropylene fabric which aids in total occlusion of defect.

cocoon pfo occluder - designed & developed by vascular innovations

Cocoon PFO Occluder
Accessory Set

Cocoon PFO Occluder Accessory set consists of
Delivery Sheath with hemostasis valve adapter - used to deliver the device.
Dilator – used to ease penetration of tissue
Loader – used to introduce the Coccon PFO Occluder into the delivery sheath.
Delivery cable – The device is screwed onto the distal tip of the delivery cable, which allows for placement and retrieval of the device.

The delivery cable is packed separately from the other accessories. The delivery cable can be used with Cocoon Duct and Septal occluders. The Cocoon PFO Occluder Accessory set is available in 8F and 9F sizes.

Cocoon PFO Occluder Technical Information

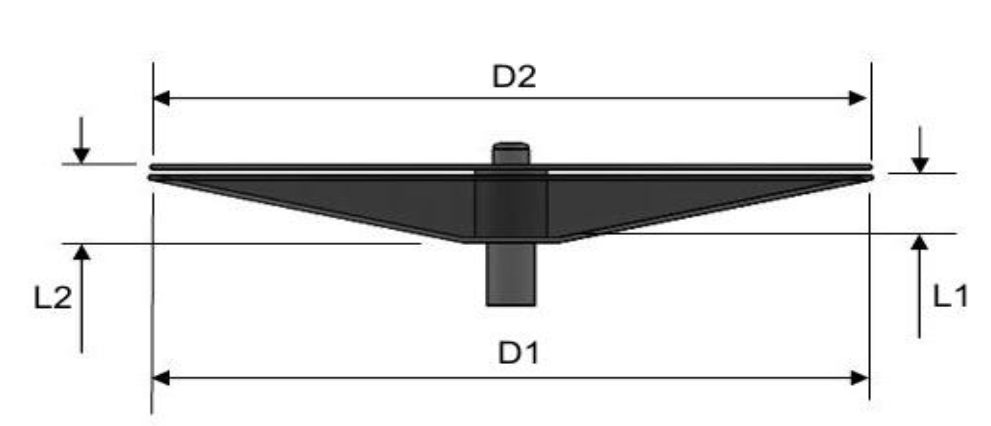

Cocoon PFO Occluders - Sizes 18, 2525 and 30 mm
Catalog
Number
Right Atrial
Disc Diameter (D1)
Left Atrial
Disc Diameter (D2)
Waist Length
(L1)
Total Length
(L2)
CPF18 18 mm 18 mm 3 mm 3 mm
CPF2525 25 mm 25 mm 3 mm 5 mm
CPF30 30 mm 30 mm 3 mm 5 mm

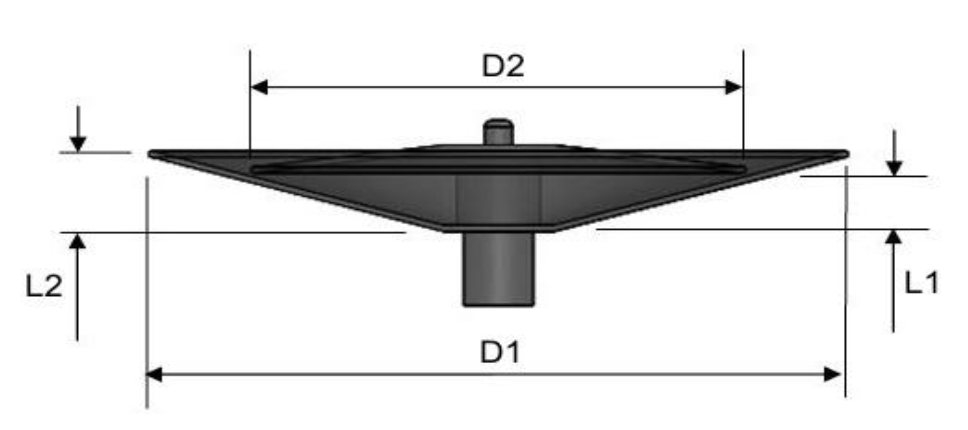

Cocoon PFO Occluders – Sizes 25, 3025 and 35 mm
Catalog
Number
Right Atrial
Disc Diameter (D1)
Left Atrial
Disc Diameter (D2)
Waist Length
(L1)
Total Length
(L2)
CPF25 25 mm 18 mm 3 mm 5 mm
CPF3025 30 mm 25 mm 3 mm 5 mm
CPF35 35 mm 25 mm 3 mm 5 mm
Recommendations
Occluder Catalog Number Recommended Accessory Set Recommended Delivery Cable
CPF18 CPF8F CDC6F
CPF25 CPF8F CDC6F
CPF2525 CPF8F CDC6F
CPF3025 CPF8F CDC6F
CPF30 CPF8F CDC6F
CPF35 CPF9F CDC6F
